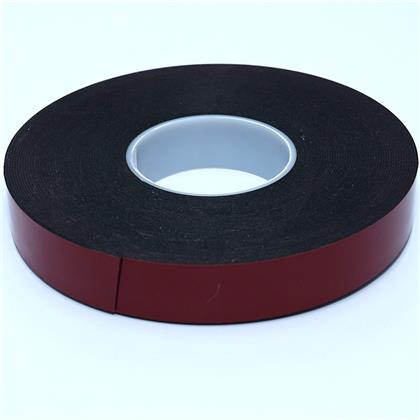

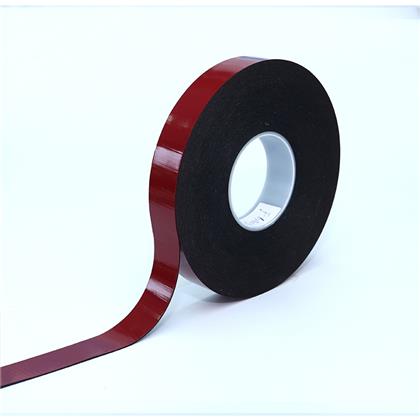

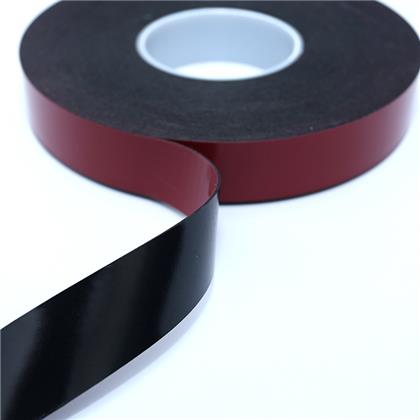

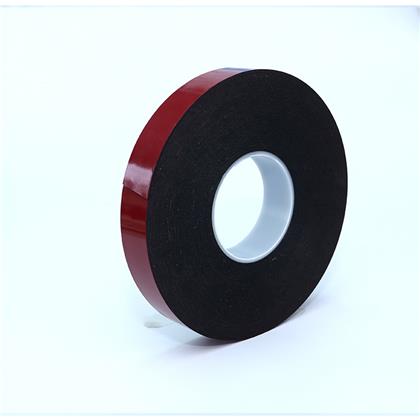

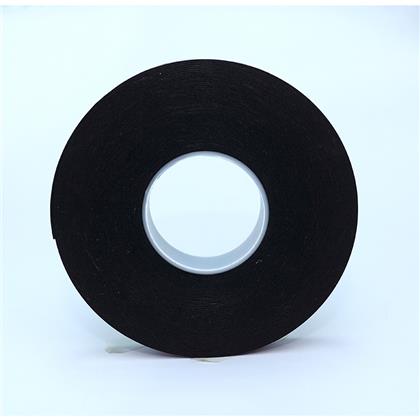

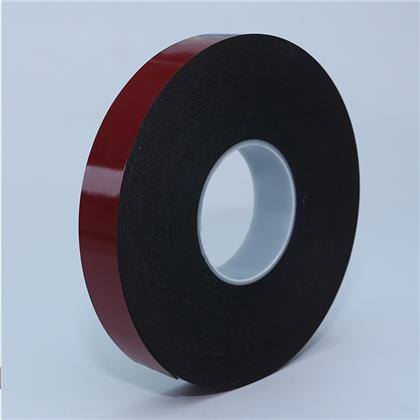

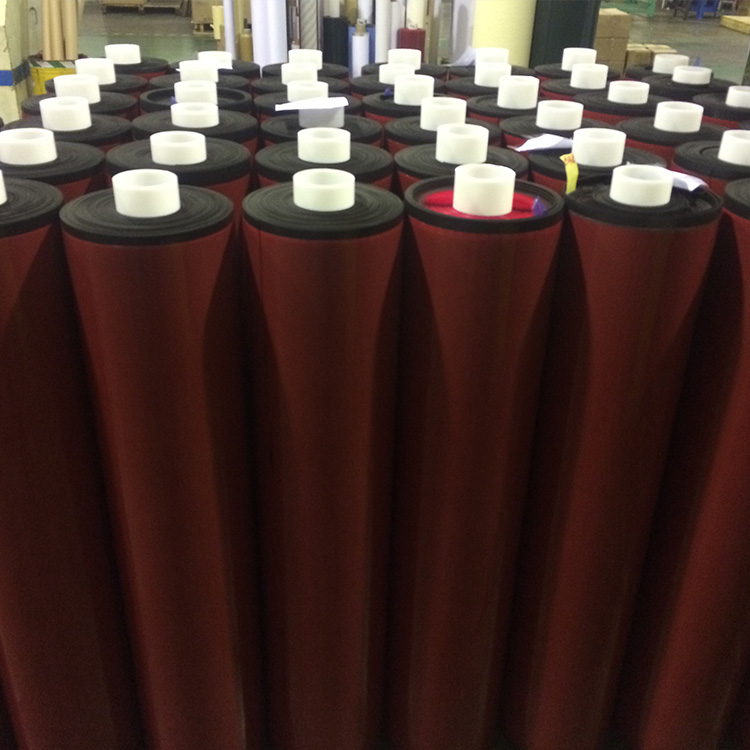

Black PE Double Sided Foam Acrylic Adhesive Tape 66100
Lixin66100 is a high performance double-sided foam bonding tape. The product is black. The Polyethylene foam is predominantly closed celled. An acrylic pressure sensitive adhesive is coated on both sides, and the product has a Polycoat paper release liner. The material can be supplied with a film liner facilitating automated application.
High Performance Black PE Double Sided Foam Acrylic Adhesive Tape - 1mm
PRODUCT DESCRIPTION
Lixin66100 is a high performance double-sided foam bonding tape. The product is black. The Polyethylene foam is predominantly closed celled. An acrylic pressure sensitive adhesive is coated on both sides, and the product has a Polycoat paper release liner. The material can be supplied with a film liner facilitating automated application.
|
Colours Black
|
|
Adhesive Acrylic
|
|
Liner Paper release liner can be supplied with film liner
|
|
Carrier PE Foam
|
|
Thickness 1 mm
|
|
Availability
|
|
APPLICATIONS
·For mirror mounting.
|
|
PRODUCT BENEFITS ·Maximum recommended weight loading of 15g/cm². ·Service temperature: -40°C to +100°C. ·Application temperature: +10°C to +40°C. ·Shelf life of 1 year from date of dispatch. ·Minimum 20% compression required to effect a water seal. ·Coated on both sides with a high quality pressure sensitive acrylic adhesive. ·Good resistance to dilute acids and alkalis. ·Very good ultraviolet {UV} light resistance. ·Resistance to abrasion, corrosion and moisture. ·Suitable for indoor and outdoor environments. ·No known hazards associated with this product. ·May be used with Perspex and Polycarbonate. ·Pre-determined dimensional sealant reduces waste. ·Clean to use. |
| product | Backing | adhesive | Total Thickness | Initial Tack | Peel Adhesion | Holding power |
Replace
Brand tape
|
||
| (um) | (mil) | (#) | N/in | ASTM D-3330 (oz/in) | |||||
| 65010 | EVA | Solvent Acrylic | 1500 | 6.0 | 12↑ | 12↑ | 36 | 24hour↑/80℃ | / |
| 65015 | EVA | Solvent Acrylic | 2000 | 8.0 | 12↑ | 12↑ | 36 | 24hour↑/80℃ | / |
| 65020 | EVA | Solvent Acrylic | 2500 | 10.0 | 12↑ | 12↑ | 36 | 24hour↑/80℃ | / |
| 66015 | PE foam | Solvent Acrylic | 150 | 6.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | Sekisui5215PSB/Nitto57115 |
| 66020 | PE foam | Solvent Acrylic | 200 | 8.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | Sekisui5200PS/Nitto57120 |
| 66025 | PE foam | Solvent Acrylic | 250 | 10.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | Sekisui5225PSB/Nitto57125 |
| 66025T | PE foam | Solvent Acrylic | 250 | 10.0 | 16↑ | 15/10↑ | 45/30 | 24hour↑/80℃ | tesa62945 |
| 66030 | PE foam | Solvent Acrylic | 300 | 12.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | Sekisui5230PSB/teraoka7813 |
| 66030T | PE foam | Solvent Acrylic | 300 | 12.0 | 16↑ | 15/10↑ | 45/30 | 24hour↑/80℃ | tesa62946 |
| 66040 | PE foam | Solvent Acrylic | 400 | 16.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | Sekisui5240NSB |
| 66050 | PE foam | Solvent Acrylic | 500 | 20.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | / |
| 66060 | PE foam | Solvent Acrylic | 600 | 24.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | Sekisui5260NSB |
| 66080 | PE foam | Solvent Acrylic | 800 | 32.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | Sekisui5290NSB |
| 66100 | PE foam | Solvent Acrylic | 1000 | 40.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | Sekisui52110NSB |
| 66100V(Low voc) | PE foam | Solvent Acrylic | 1000 | 40.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | / |
| 66150 | PE foam | Solvent Acrylic | 1500 | 60.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | / |
| 66200 | PE foam | Solvent Acrylic | 2000 | 80.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | / |
| 66300 | PE foam | Solvent Acrylic | 3000 | 120.0 | 18↑ | 20↑ | 60 | 24hour↑/80℃ | / |
