PVC General Purpose Adhesive tape-21G66
Lixin 21G66 is a 0.13mm general-purpose self-extinguishing soft PVC pressure sensitive adhesive tape. It has been designed for all applications of splicing, cable bundling, colour coding or primary electrical insulation up to 600 volts.
PVC General Purpose Adhesive Tape - 0.13mm
PRODUCT REFERENCE
Lixin 21G66 is a 0.13mm general-purpose self-extinguishing soft PVC pressure sensitive adhesive tape. It has been designed for all applications of splicing, cable bundling, colour coding or primary electrical insulation up to 600 volts.
|

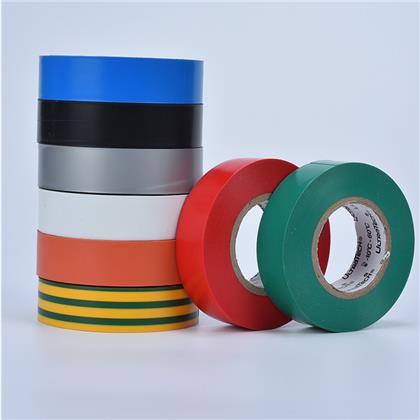

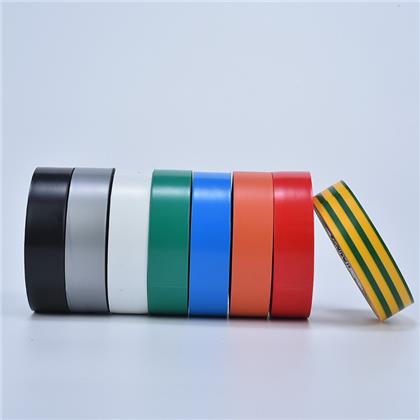

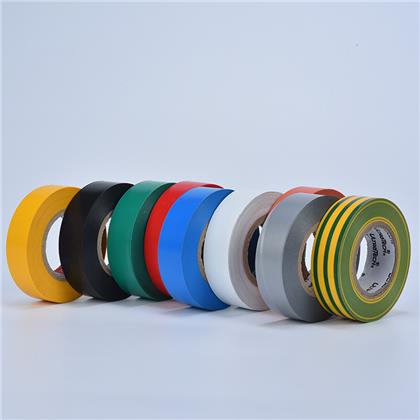

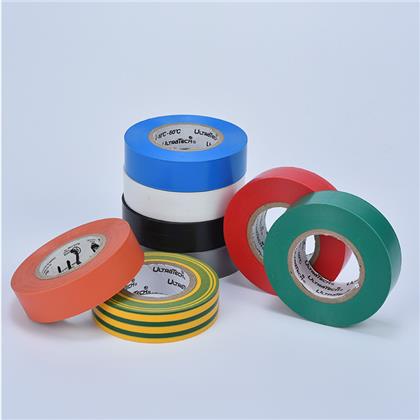

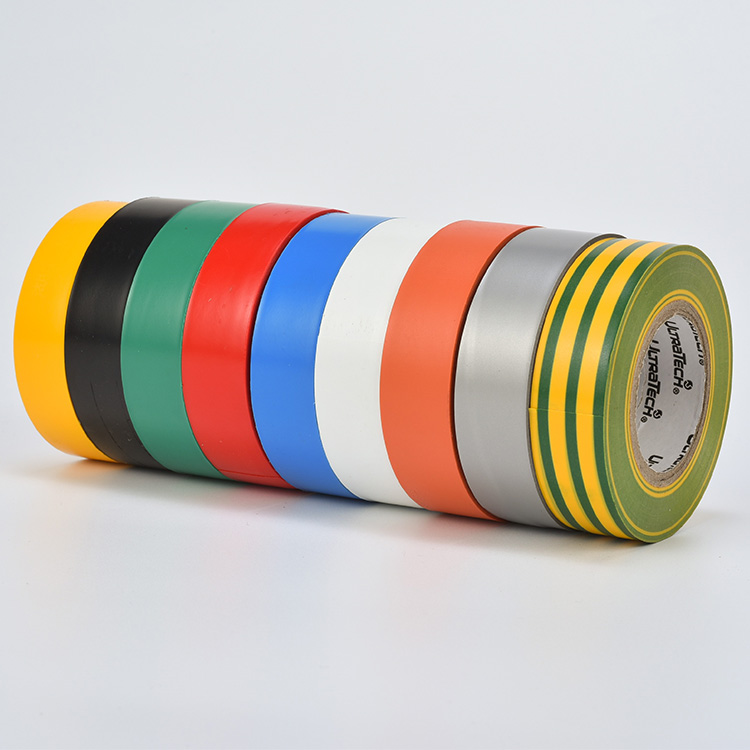

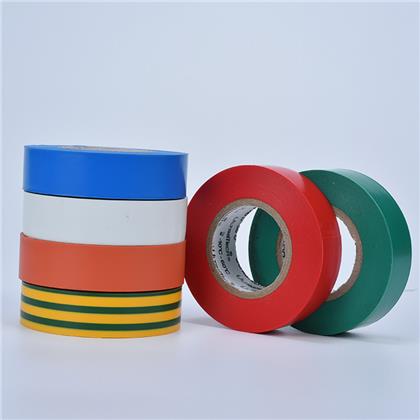

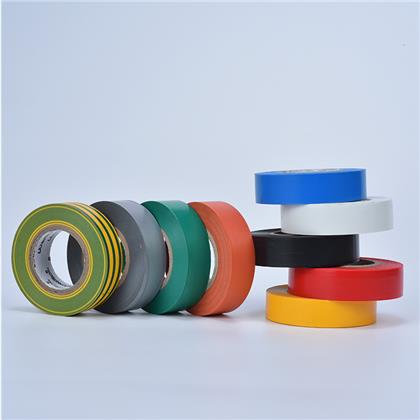

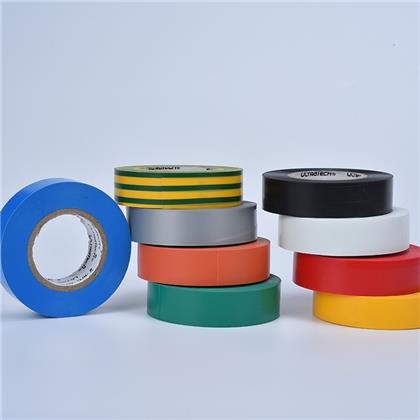

Colours Black, White, Red, Blue, Yellow, Yellow/Green, Transparent, Grey
|
|
Adhesive Rubber Resin
|
|
Carrier Soft PVC
|
|
Thickness 0.13 mm
|
|
APPLICATIONS ·Cable bundling. ·Colour coding. ·Duct sealing. ·General purpose splicing. ·Primary electrical insulation up to 600 volts |
|
PRODUCT BENEFITS ·Good resistance to abrasion, corrosion and moisture. ·Good dielectric strength and mechanical protection. ·Excellent conformability. ·Environmentally friendly technology. ·Conforms to the European Directive 2000/53 EC (lead, chromium VI, mercury, cadmium free). ·Continuous temperature, 60°C. ·Conforms to BS 3924. |
| product | Total Thickness | Carrier | Backing Thickness | Adhesion to steel | Adhesion to Backing |
Tensile Strength |
Elongation
(%)
|
Dielectric Strength | Max.Continuous Operating Temperature |
| (um) | (um) | N/cm | N/cm | N/cm | % | kv/mm | |||
| 21116 | 110 | PVC Flim | 95 | 1.2 | 1.0 | 18 | 220 | 45 | 80°C/176°F |
| 21126 | 120 | PVC Flim | 105 | 1.2 | 1.0 | 19 | 220 | 45 | 80°C/176°F |
| 21G66 | 130 | PVC Flim | 115 | 1.2 | 1.0 | 21 | 230 | 45 | 80°C/176°F |
| 21156 | 150 | PVC Flim | 135 | 1.2 | 1.0 | 23 | 250 | 45 | 80°C/176°F |
| 21166 | 165 | PVC Flim | 150 | 1.2 | 1.0 | 25 | 250 | 43 | 80°C/176°F |
| 21176 | 175 | PVC Flim | 160 | 1.2 | 1.0 | 27 | 250 | 43 | 80°C/176°F |
| 21556 | 180 | PVC Flim | 165 | 1.2 | 1.0 | 28 | 250 | 43 | 80°C/176°F |
| 21196 | 190 | PVC Flim | 175 | 1.2 | 1.0 | 29 | 250 | 43 | 80°C/176°F |
| 21206 | 200 | PVC Flim | 185 | 1.2 | 1.0 | 30 | 250 | 43 | 80°C/176°F |
