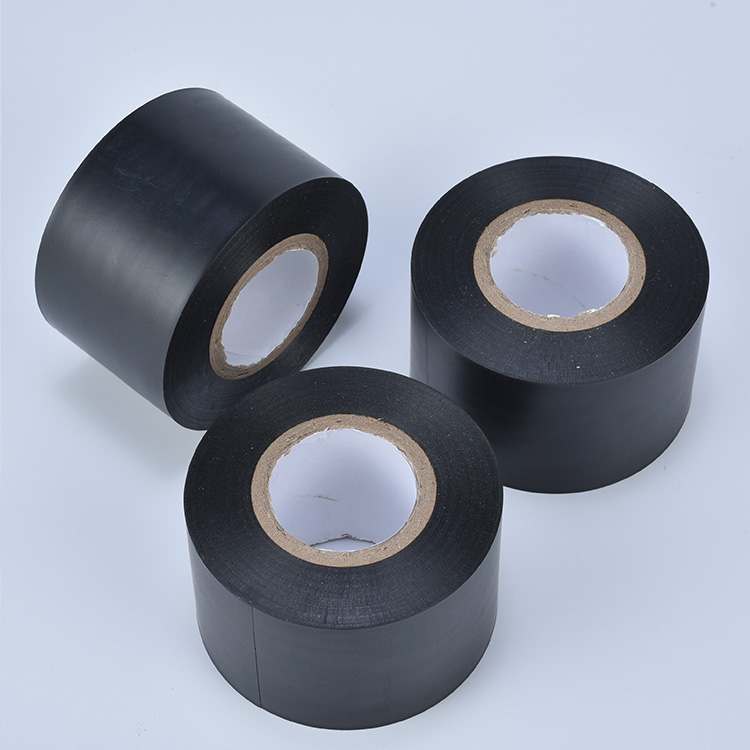

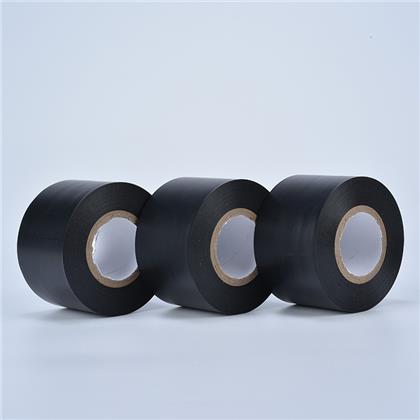

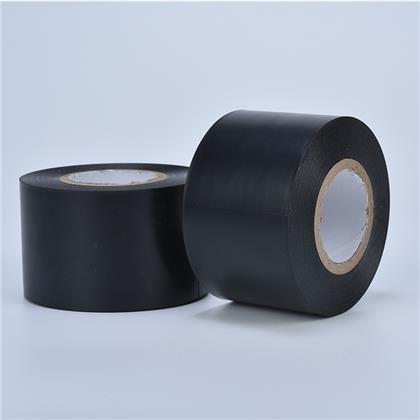

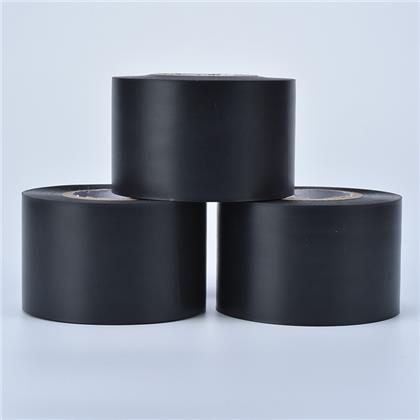

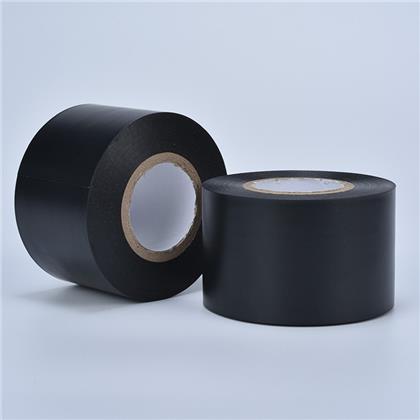

PVC Heavy Duty Adhesive Tape
Lixin heavy-duty premium non corrosive self-extinguishing soft PVC tape which combines the high flexibility and abrasion resistance of a superior quality soft PVC backing with the high grab and adhesion of an aggressive non corrosive pressure sensitive rubber-based adhesive system. It has been designed for all underground or above ground optimum anti corrosive duct and pipe protection and for improved electrical insulation.
PVC Heavy Duty Adhesive Tape
PRODUCT REFERENCE
Lixin heavy-duty premium non corrosive self-extinguishing soft PVC tape which combines the high flexibility and abrasion resistance of a superior quality soft PVC backing with the high grab and adhesion of an aggressive non corrosive pressure sensitive rubber-based adhesive system. It has been designed for all underground or above ground optimum anti corrosive duct and pipe protection and for improved electrical insulation.
|
Colours Black
|
|
Adhesive Rubber Resin
|
|
Carrier Soft PVC
|
|
Thickness 0.18mm/0.25 mm/0.5mm
|
|
APPLICATIONS ·Heavy duty anti-corrosive protection tape for all ducts, pipelines and tubes. ·Primary electrical insulation. ·Protection for low and medium voltage cables splices. ·Typically engineered for the professional requirements of telecom and electricity boards.
|
|
PRODUCT BENEFITS ·Excellent resistance to abrasion, corrosion and moisture. ·High dielectric strength and mechanical protection. ·Excellent conformability ·Environmentally friendly technology. ·Conforms to European Directive 2000/53 EC (lead, chromium VI, mercury, cadmium free). ·Continuous Temperature +70°C. |
|
Features ·Flame retardant ·Self Extinguishing ·Conformable ·Water and UV Resistant ·Abrasion Resistant ·Non-corrosive adhesive |
|
|
| product | Total Thickness | Carrier | Backing Thickness | Adhesion to steel | Adhesion to Backing |
Tensile Strength |
Elongation
(%)
|
Dielectric Strength | Max.Continuous Operating Temperature |
| (um) | (um) | N/cm | N/cm | N/cm | % | kv/mm | |||
| 21116 | 110 | PVC Flim | 95 | 1.2 | 1.0 | 18 | 220 | 45 | 80°C/176°F |
| 21126 | 120 | PVC Flim | 105 | 1.2 | 1.0 | 19 | 220 | 45 | 80°C/176°F |
| 21G66 | 130 | PVC Flim | 115 | 1.2 | 1.0 | 21 | 230 | 45 | 80°C/176°F |
| 21156 | 150 | PVC Flim | 135 | 1.2 | 1.0 | 23 | 250 | 45 | 80°C/176°F |
| 21166 | 165 | PVC Flim | 150 | 1.2 | 1.0 | 25 | 250 | 43 | 80°C/176°F |
| 21176 | 175 | PVC Flim | 160 | 1.2 | 1.0 | 27 | 250 | 43 | 80°C/176°F |
| 21556 | 180 | PVC Flim | 165 | 1.2 | 1.0 | 28 | 250 | 43 | 80°C/176°F |
| 21196 | 190 | PVC Flim | 175 | 1.2 | 1.0 | 29 | 250 | 43 | 80°C/176°F |
| 21206 | 200 | PVC Flim | 185 | 1.2 | 1.0 | 30 | 250 | 43 | 80°C/176°F |
