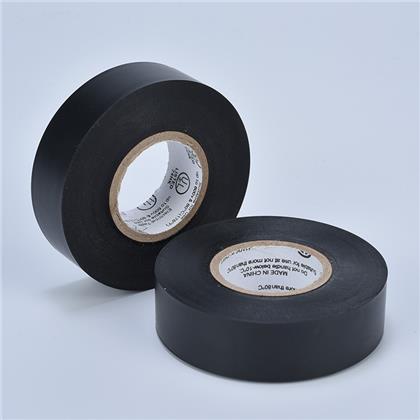

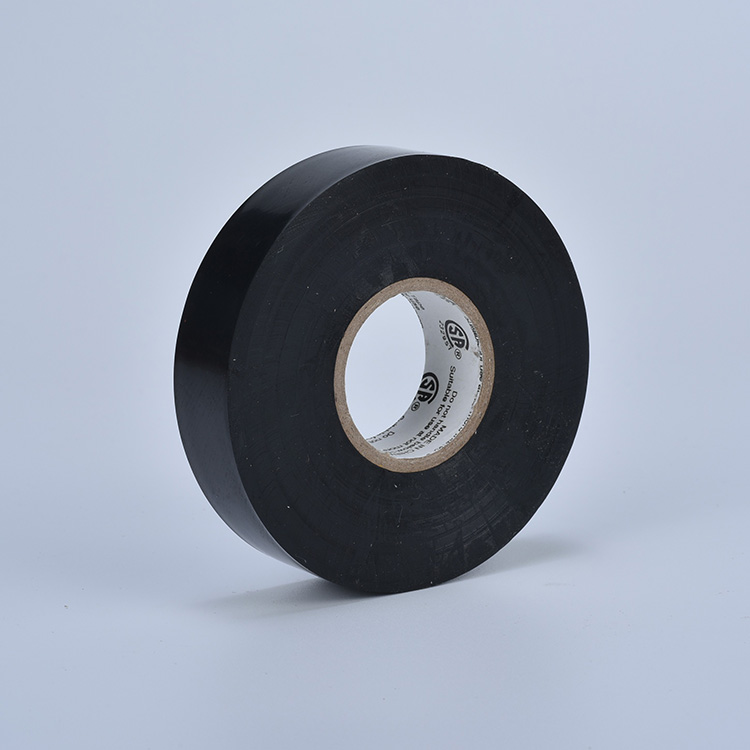

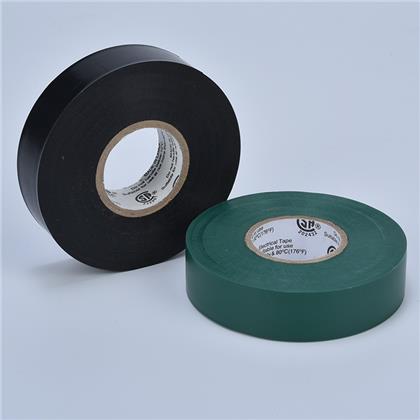

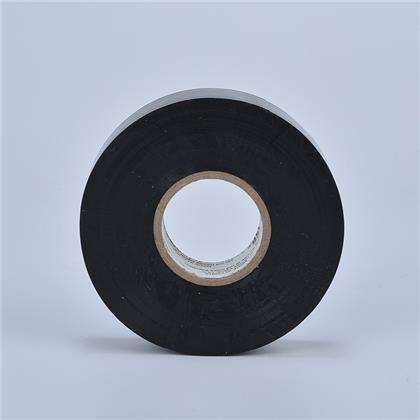

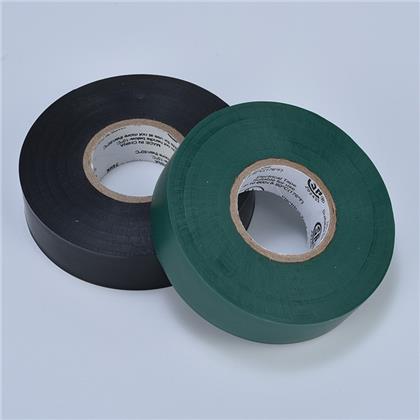

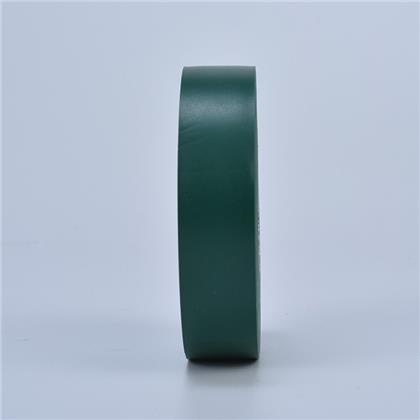

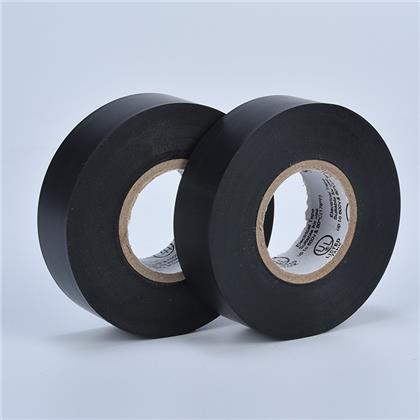

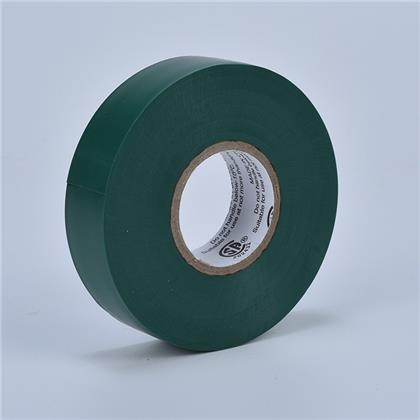

PVC Premium Electrical Adhesive Tape-21556
Lixin 21556 is a 0.18mm premium quality, professional grade, electrical self-extinguishing soft PVC tape which uses an aggressive pressure sensitive rubber-based adhesive system. It has been designed for use where a recognised specification or international standard is a must and where environmental safety is a concern.
PVC Premium Electrical Adhesive Tape - 0.18mm
PRODUCT REFERENCE
Lixin 21556 is a 0.18mm premium quality, professional grade, electrical self-extinguishing soft PVC tape which uses an aggressive pressure sensitive rubber-based adhesive system. It has been designed for use where a recognised specification or international standard is a must and where environmental safety is a concern.
|
Colours Black, White, Red, Blue, Grey
|
|
Adhesive Rubber Resin
|
|
Carrier Soft PVC
|
|
Thickness 0.18 mm
|
|
APPLICATIONS ·Primary electrical insulation ·Harnessing ·Protection for low and medium voltage cables splices ·Typically engineered for the professional requirements of telecom and electricity boards ·Automotive electrical wire harness wrapping
|
|
PRODUCT BENEFITS ·Excellent resistance to abrasion, corrosion and moisture ·High dielectric strength and mechanical protection ·Excellent conformability ·Suitable for indoor and outdoor applications ·Tape can be applied at low temperature (till -10°C) ·Conforms to the European Directive 2011/65/EC (RoHS 2) and Commission Delegated Directive (EU) 2015/863 (RoHS 3) ·Complies to REACH ·Index temperature 0°C to 90°C according to IMQ and VDE Approval Certificates ·IMQ and VDE Approval Certificates according to IEC 60454-3-1 ·Operating temperature resistance between –40°C to +105°C on harness according to Automotive OEMs’ specifications |
|
DATASHFeatures ·Flame Retardant ·Self-extinguishing ·Low and High Temperature Resistant ·Resistant to rapid temperature change ·Conformable ·Water and UV Resistant ·Abrasion Resistant ·Non-corrosive adhesive |
|
|
| product | Total Thickness | Carrier | Backing Thickness | Adhesion to steel | Adhesion to Backing |
Tensile Strength |
Elongation
(%)
|
Dielectric Strength | Max.Continuous Operating Temperature |
| (um) | (um) | N/cm | N/cm | N/cm | % | kv/mm | |||
| 21116 | 110 | PVC Flim | 95 | 1.2 | 1.0 | 18 | 220 | 45 | 80°C/176°F |
| 21126 | 120 | PVC Flim | 105 | 1.2 | 1.0 | 19 | 220 | 45 | 80°C/176°F |
| 21G66 | 130 | PVC Flim | 115 | 1.2 | 1.0 | 21 | 230 | 45 | 80°C/176°F |
| 21156 | 150 | PVC Flim | 135 | 1.2 | 1.0 | 23 | 250 | 45 | 80°C/176°F |
| 21166 | 165 | PVC Flim | 150 | 1.2 | 1.0 | 25 | 250 | 43 | 80°C/176°F |
| 21176 | 175 | PVC Flim | 160 | 1.2 | 1.0 | 27 | 250 | 43 | 80°C/176°F |
| 21556 | 180 | PVC Flim | 165 | 1.2 | 1.0 | 28 | 250 | 43 | 80°C/176°F |
| 21196 | 190 | PVC Flim | 175 | 1.2 | 1.0 | 29 | 250 | 43 | 80°C/176°F |
| 21206 | 200 | PVC Flim | 185 | 1.2 | 1.0 | 30 | 250 | 43 | 80°C/176°F |
