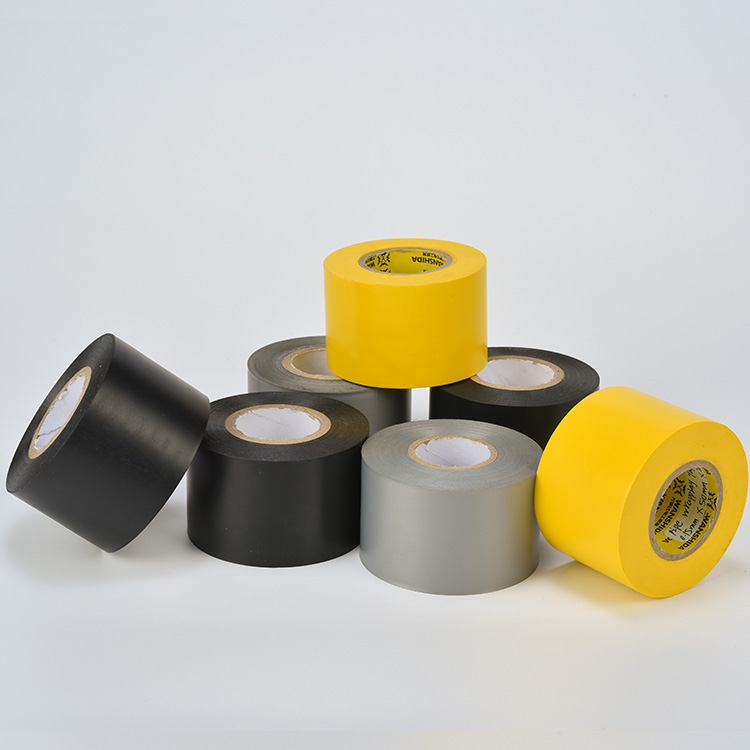

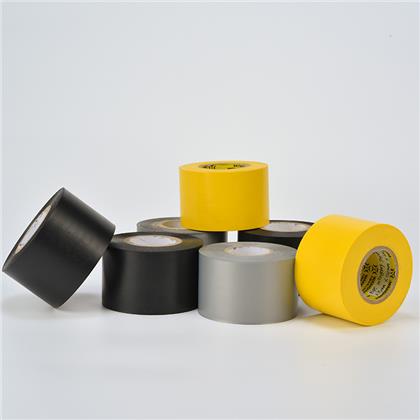

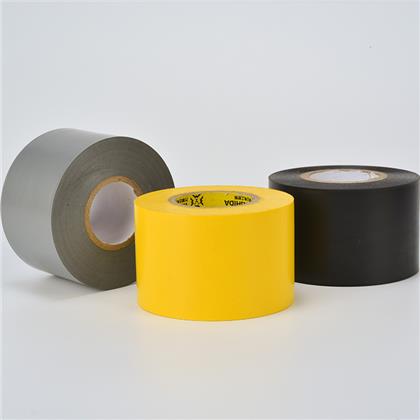

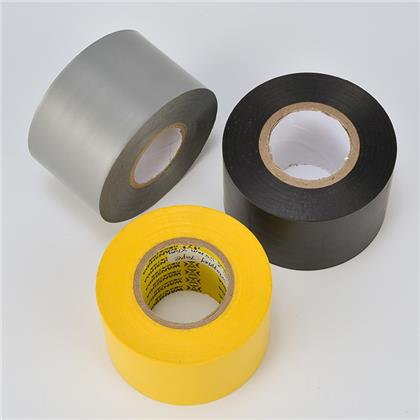

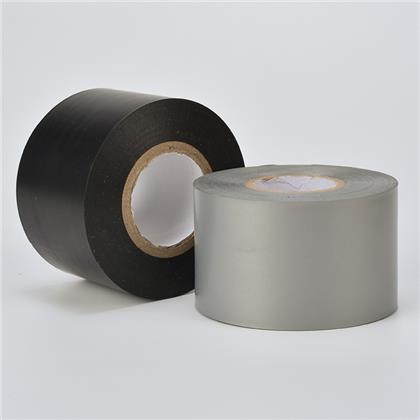

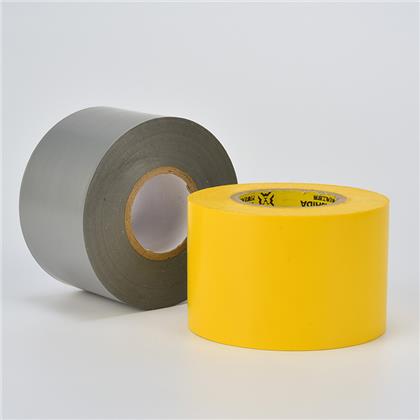

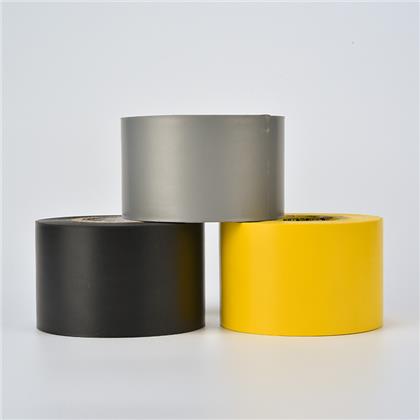

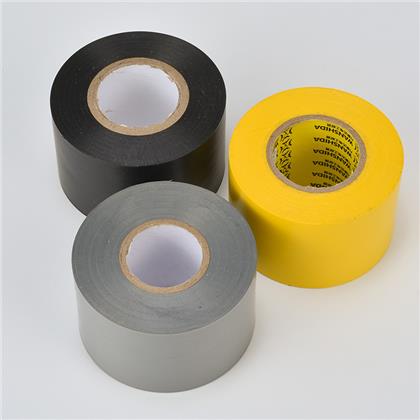

PVC Pipe wrapping Tape
PVC pipe wrapping tape is using soft PVC film as backing material and coated with rubber based adhesive. The thickness ranges from 110mic to 500mic. It is used for pipe wrapping and protecting
The tape has a very good abrasion and water resistance that enables the tape to be used where damp or moisture is present and makes it ideal for underground pipewrap applications and general external tasks where a good waterproof seal is required.
PVC Pipe wrapping Tape
PRODUCT REFERENCE
PVC pipe wrapping tape is using soft PVC film as backing material and coated with rubber based adhesive. The thickness ranges from 110mic to 500mic. It is used for pipe wrapping and protecting
The tape has a very good abrasion and water resistance that enables the tape to be used where damp or moisture is present and makes it ideal for underground pipewrap applications and general external tasks where a good waterproof seal is required.
|
Colours Black,Yellow, silver Grey
|
|
Adhesive Rubber Resin
|
|
Carrier Soft PVC
|
|
Thickness 0.13/0.15/0.18/0.20/0.25/0.50mm
|
|
APPLICATIONS ·Corrosion and abrasion protection for pipework above or under ground ·For insulation protection of various pipes
|
|
PRODUCT BENEFITS ·Excellent resistance to abrasion, corrosion and moisture ·Excellent conformability ·Tape can be applied at low temperature (till -10°C) ·Index temperature 0°C to 90°C ·Accordance with the requirements of the RoHS directive |
|
Features ·Flame Retardant ·Self-extinguishing ·Easy unwind and easy tear ·Flexible and Conformable ·Water Resistant ·UV Resistant ·Abrasion Resistant ·Non-corrosive adhesive |
|
|
| product | Total Thickness | Carrier | Backing Thickness | Adhesion to steel | Adhesion to Backing |
Tensile Strength |
Elongation
(%)
|
Dielectric Strength | Flame Resistance | Max.Continuous Operating Temperature |
| (um) | (um) | N/cm | N/cm | N/cm | % | kv/mm | ||||
| 21F36 | 130 | PVC Flim | 115 | 1.2 | / | 20 | 200 | / | / | 80°C/176°F |
| 21F56 | 150 | PVC Flim | 135 | 1.2 | / | 22 | 220 | / | / | 80°C/176°F |
| 21F86 | 180 | PVC Flim | 175 | 1.2 | / | 28 | 230 | / | / | 80°C/176°F |
| 21206 | 200 | PVC Flim | 185 | 1.2 | / | 30 | 230 | / | / | 80°C/176°F |
| 21256 | 250 | PVC Flim | 235 | 1.0 | / | 35 | 250 | / | / | 80°C/176°F |
| 21506 | 500 | PVC Flim | 235 | 1.0 | / | 50 | 250 | / | / | 80°C/176°F |
