PVC Wire Harness Adhesive Tape
PVC Wire Harness Adhesive Tape is a 0.11mm premium quality, electrical self-extinguishing soft PVC tape which uses an aggressive pressure sensitive rubber-based adhesive system. It has been designed for use where a recognised specification or international standard is required and where environmental safety is of concern.
PVC Wire Harness Adhesive Tape - 0.11mm
PRODUCT REFERENCE
PVC Wire Harness Adhesive Tape is a 0.11mm premium quality, electrical self-extinguishing soft PVC tape which uses an aggressive pressure sensitive rubber-based adhesive system. It has been designed for use where a recognised specification or international standard is required and where environmental safety is of concern.
|

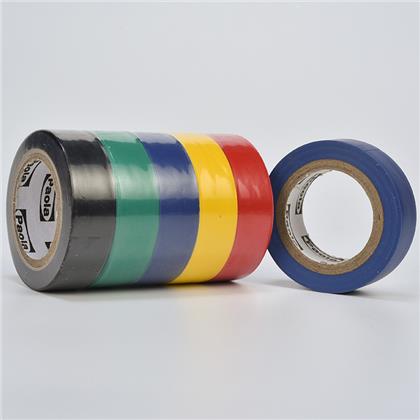

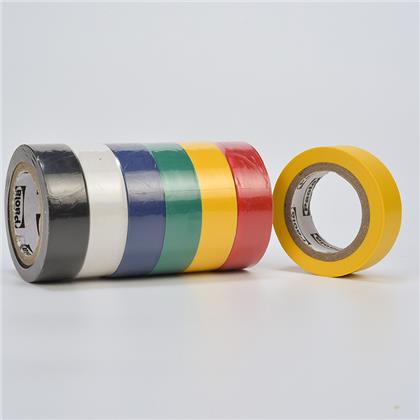

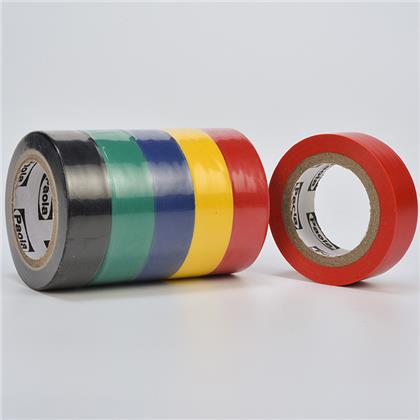

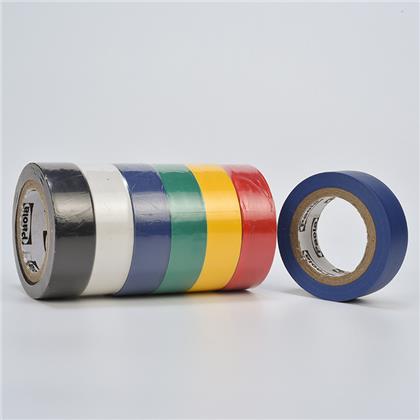

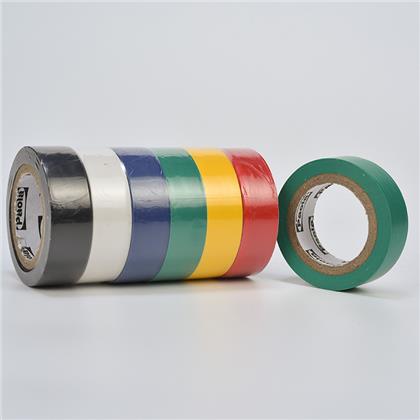

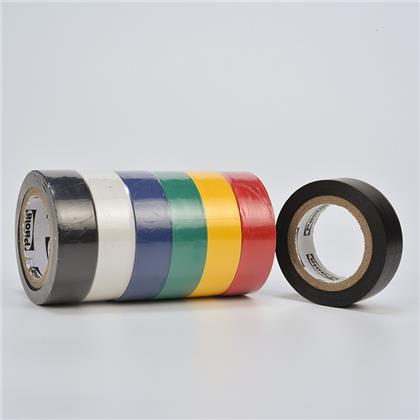

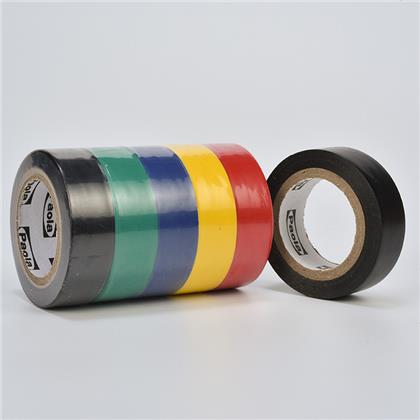

Colours Black, Red, Blue, Yellow, Brown, Orange, Violet, Yellow/Green, Blue transparent, Grey
|
|
Adhesive Rubber Resin
|
|
Carrier Soft PVC
|
|
Thickness 0.11 mm
|
|
APPLICATIONS ·Primary electrical insulation ·Harnessing ·Protection for low and medium voltage cables splices ·Colour coding ·Industrial applications
|
|
PRODUCT BENEFITS ·Excellent resistance to abrasion, corrosion and moisture ·High dielectric strength and mechanical protection ·Excellent conformability ·Tape can be applied at low temperature (till -10°C) ·Index temperature 0°C to 90°C |
| product | Total Thickness | Carrier | Backing Thickness | Adhesion to steel | Adhesion to Backing |
Tensile Strength |
Elongation
(%)
|
Dielectric Strength | Max.Continuous Operating Temperature |
| (um) | (um) | N/cm | N/cm | N/cm | % | kv/mm | |||
| 21116 | 110 | PVC Flim | 95 | 1.2 | 1.0 | 18 | 220 | 45 | 80°C/176°F |
| 21126 | 120 | PVC Flim | 105 | 1.2 | 1.0 | 19 | 220 | 45 | 80°C/176°F |
| 21G66 | 130 | PVC Flim | 115 | 1.2 | 1.0 | 21 | 230 | 45 | 80°C/176°F |
| 21156 | 150 | PVC Flim | 135 | 1.2 | 1.0 | 23 | 250 | 45 | 80°C/176°F |
| 21166 | 165 | PVC Flim | 150 | 1.2 | 1.0 | 25 | 250 | 43 | 80°C/176°F |
| 21176 | 175 | PVC Flim | 160 | 1.2 | 1.0 | 27 | 250 | 43 | 80°C/176°F |
| 21556 | 180 | PVC Flim | 165 | 1.2 | 1.0 | 28 | 250 | 43 | 80°C/176°F |
| 21196 | 190 | PVC Flim | 175 | 1.2 | 1.0 | 29 | 250 | 43 | 80°C/176°F |
| 21206 | 200 | PVC Flim | 185 | 1.2 | 1.0 | 30 | 250 | 43 | 80°C/176°F |
