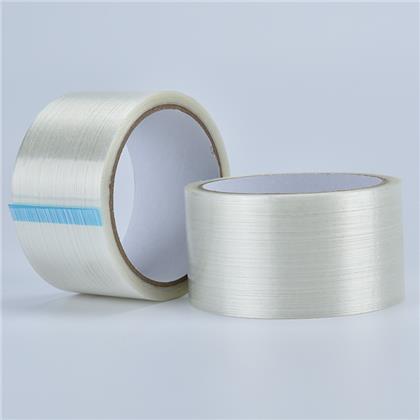

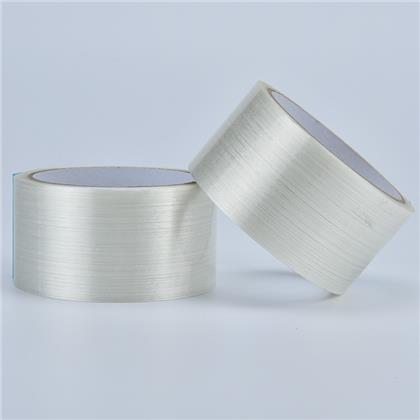

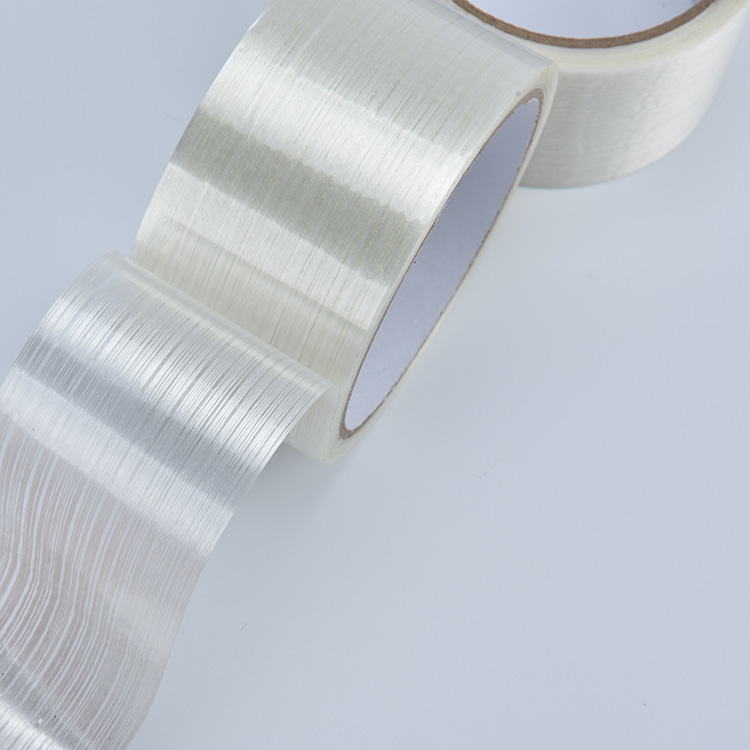

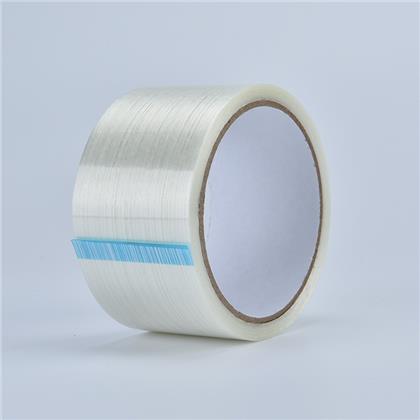

High Temperature Resistant Acrylic Filament Tape
Lixin5605 is a transparent and reinforced filament tape. Glass fiber contributes higher tensile strength and improved synthetic rubber adhesive delivers stronger adhesion; high resistance to abrasion; impact resistance and high holding power.
High Temperature Resistant Acrylic Filament Tape
PRODUCT DESCRIPTION
Lixin5695 is a transparent and high strength filament tape. Glass fiber contributes higher tensile strength and improved pressure-sensitive adhesive delivers high viscosity andtensile strength; high resistance to abrasion; impact resistance and high holding power.
|
Adhesive
Acrylic adhesive
|
|
Liner None
|
|
Carrier PET Fiberglass reinforced |
|
Thickness 0.16 mm |
|
APPLICATIONS ·Suitable for transformers, coilsand motor parts strapping and fixing ·Packaging, Tabbing , Splicing, Binding & Harnessing, Coil Wrap Banding, Bundling
|
|
PRODUCT BENEFITS
·Industrial grade fiberglass reinforced strapping tape |
|
General Purpose Mono Filament Tape Technical Data Sheet |
|||||||||||
| Product | Adhesive | Backing | Color | Total Thickness | Peel Adhesion | Tensile Strength | Elongation | Tem range | |||
| mm | mils | N/25mm | Ibs/in | N/25mm | Ibs/in | ℃ | |||||
| LIXIN5670 | Synthetic Rubber | PET-Fiberglass | Clear | 0.13 | 5.1 | 18 | 65 | 550 | 124 | 3% | -5-70 |
| LIXIN5680 | Synthetic Rubber | PET-Fiberglass | Clear | 0.14 | 5.5 | 22 | 79 | 550 | 124 | 3% | -5-70 |
| LIXIN5690 | Synthetic Rubber | PET-Fiberglass | Clear | 0.15 | 5.9 | 25 | 90 | 550 | 124 | 3% | -5-70 |
| LIXIN5693 | Synthetic Rubber | PET-Fiberglass | Clear | 0.16 | 6.3 | 25 | 90 | 550 | 124 | 3% | -5-70 |
| LIXIN5610 | Synthetic Rubber | PET-Fiberglass | Clear | 0.11 | 4.3 | 25 | 90 | 400 | 90 | 3% | -5-70 |
| LIXIN5611 | Synthetic Rubber | PET-Fiberglass | Clear | 0.1 | 3.9 | 25 | 90 | 400 | 90 | 3% | -5-70 |
| LIXIN5602 | Synthetic Rubber | PET-Fiberglass | Clear | 0.1 | 3.9 | 23 | 83 | 550 | 124 | 3% | -5-70 |
| LIXIN5603 | Synthetic Rubber | BOPP-Fiberglass | Clear | 0.11 | 4.3 | 22 | 79 | 500 | 112 | 3% | -5-70 |
| LIXIN5605 | Synthetic Rubber | BOPP-Fiberglass | Clear | 0.13 | 5.1 | 23 | 83 | 550 | 124 | 3% | -5-70 |
| LIXIN5606 | Synthetic Rubber | PET-Fiberglass | Clear | 0.14 | 5.5 | 23 | 83 | 570 | 128 | 3% | -5-70 |
| LIXIN560A | Synthetic Rubber | PET-Fiberglass | Clear | 0.15 | 5.9 | 25 | 90 | 850 | 191 | 3% | -5-70 |
| LIXIN5607 | Synthetic Rubber | PET-Fiberglass | Milk white | 0.14 | 5.5 | 26 | 94 | 950 | 214 | 3% | -5-70 |
| LIXIN5695 | Solvent Acrylic | PET-Fiberglass | Clear | 0.16 | 6.3 | 16 | 58 | 950 | 214 | 3% | -5-100 |
